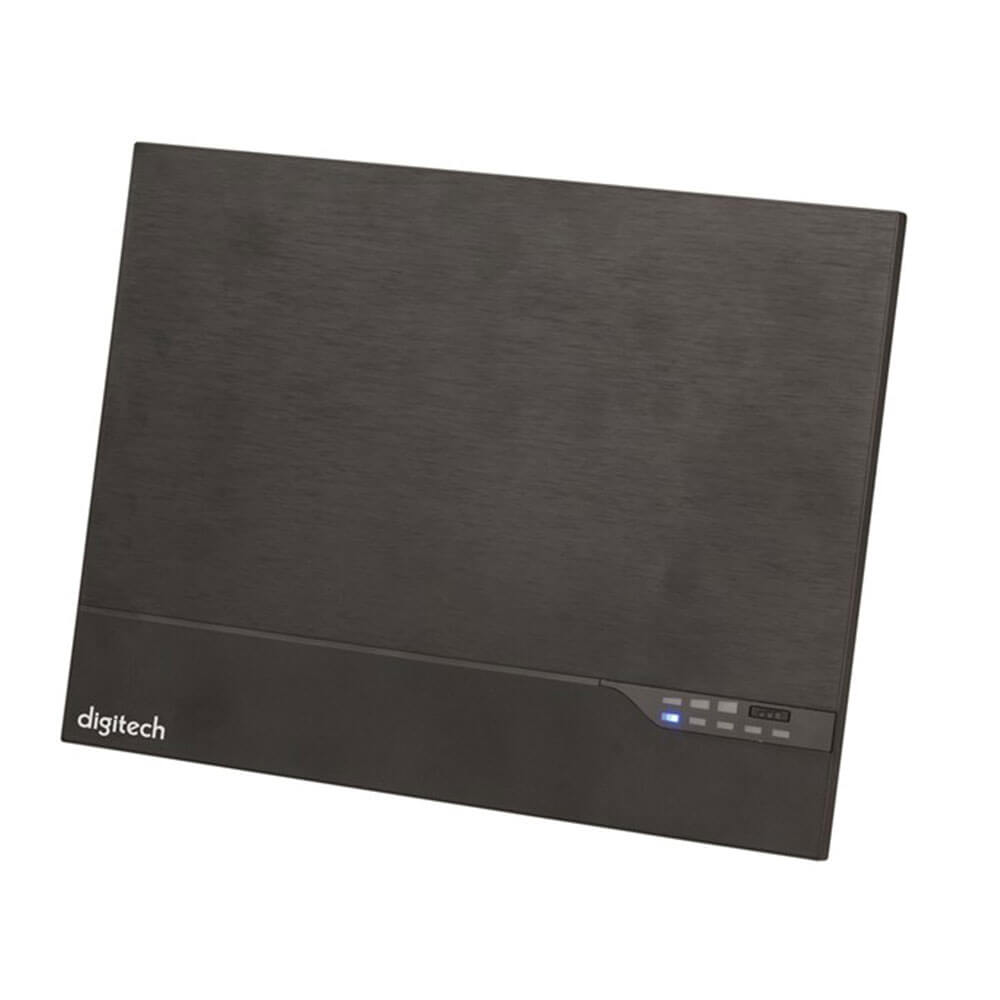

This slimline indoor antenna can be used on a table or mounted on a wall using the supplied hardware. It features an LED signal strength meter which helps you position the antenna for best reception. An in-built automatic gain amplifier boosts the UHF and VHF signals and includes an internal 4G/LTE filter. Suitable to use with DVB-T/DVB-T2 and a signal range capable of up to 25km away from the TV tower.
Features:
- Up to 25km TV Transmitter Range
- LED Signal Strength Meter
- In-Built Amplifier
- Automatic Gain Control
- Stand & Wall Mountable
Includes:
- 1 x Slimline Indoor UHF/VHF Antenna
- 1 x Antenna Stand

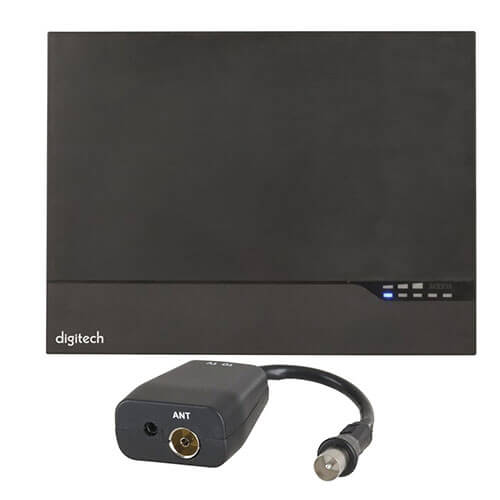

- 1 x Mains Power Adaptor
- 1 x Wall Mounting Hardware
Product Specifications
- DC current rating : 80.0mA
- DC Voltage : 6.0V
- Width : 305.0mm
- Height : 230.0mm
- Depth : 20.0mm
- Mounting Method : Desk Stand
- RF type : PAL/Belling-Lee
- RF impedance : 75.0Ohm
- Antenna Type : Flat Panel
- Usage Location : Indoor
- Reception Bands : TV Band 1, TV Band 2, TV Band 3: 174-230MHz, TV Band 4: 526-582MHz
- UHF Frequency Range : 470.0MHz, 862.0MHz
- UHF Channel Range : 25.0ch, 69.0ch
- UHF Gain : 26.0dB
- VHF Frequency Range : 170.0MHz, 230.0MHz
- VHF Channels Covered : 6.0ch, 12.0ch
- VHF Gain : 30.0dB
Length : 31,3 cm |
Width : 24 cm |
Height : 6 cm |
