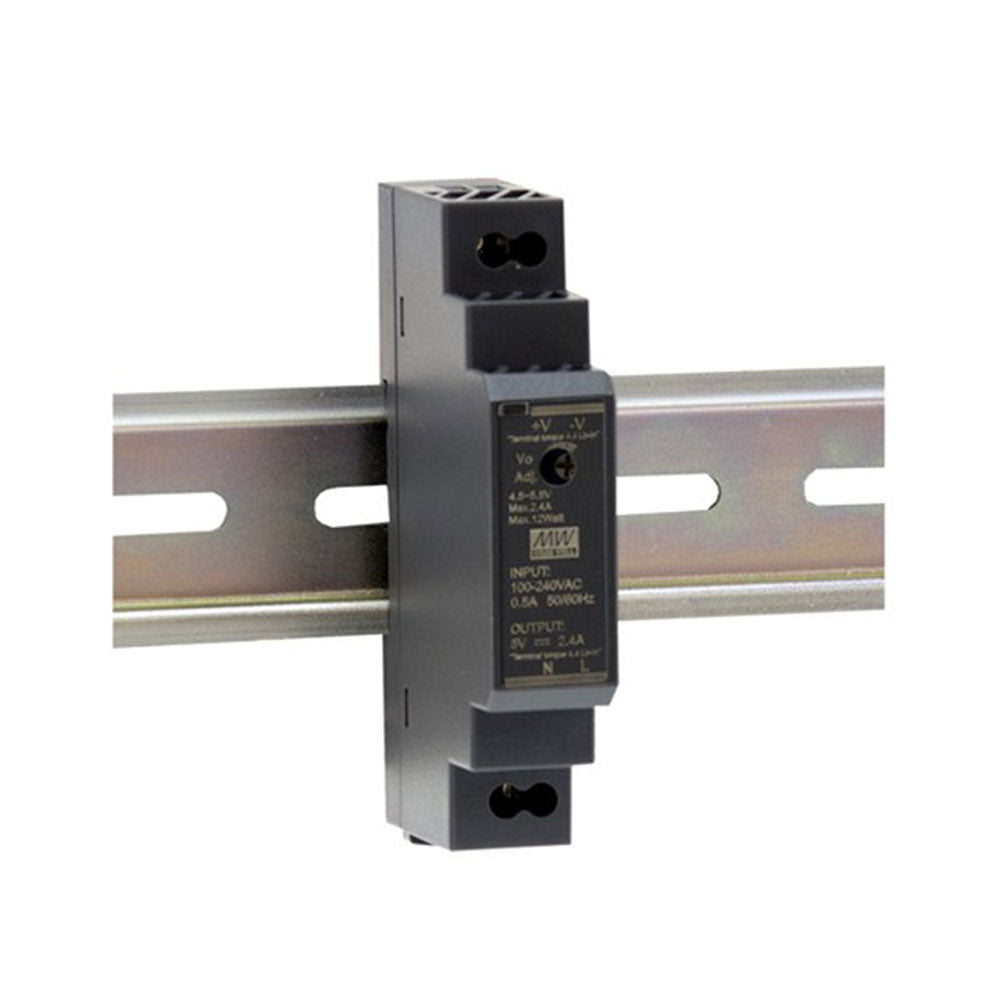

Mean Well 15W Rail Mount Switchmode PSU (24V 0.62A)

Mean Well HDR DIN Rail power supplies are available in 15W, 30W, or 60W and feature an ultra-slim, step shape plastic housing. The HDR family specially adopts the European Union standard DIN EN43880 and slim design with a height of 90mm and the width are only 1SU to 3SU (17.5mm/35mm/52.5mm). They also feature efficiencies up to 91%, adjustable (+/-10%) DC output voltage, and a working temperature range of -30 to +70 Degrees Calcic.

Product Specifications

• Short circuit / overload / over voltage protections
• DIN rail TS-35/7.5 or 15 mountable
• Pass LPS (limited power source)
• Isolation class II
• Cooling by free air convection
• LED indicator for power on
• DC Current: 0.63a
• DC Voltage: 24v DC
• Continuous Power rating: 15w
• Length: 90mm
• Width: 17.5mm
• Depth: 54.5mm
• AC Voltage: 120-370v AC
• Efficiency: 86%
