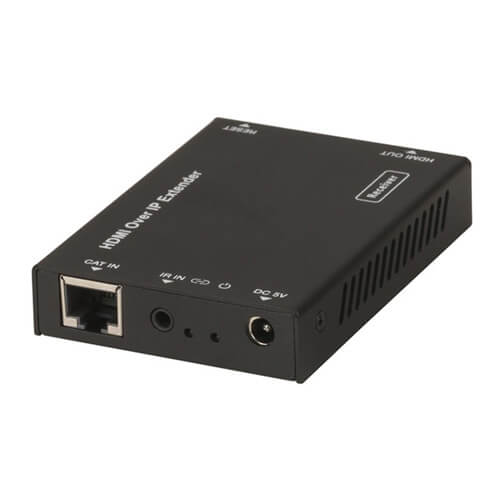

HDMI Over IP Extender with Loop Out 150m

Enables you to expand your AC-1752 150m 1080p HDMI Cat5e/Cat6 Over IP Extender to a screen in another room. Includes a mains power adaptor and infrared remote receiver so you can use your infrared remote control from the receiving point.

Digital Audio Format : LPCM

Maximum Signal Frequency : 48kHz

Maximum Channel Support : 2ch

Width : 61mm

Height : 17mm

Depth : 86mm

Weight : 150g

PSU Powers : Transmitter

DC Plugpack Voltage : 5V, 5V

DC Current Draw : 1A, 1A

Item Connection : Barrel Plug

PSU Powers : Receiver

DC Plugpack Voltage : 5V

DC Current Draw : 1A

Item Connection : Barrel Plug

Packaged Volume : 1.56l

Packaged Weight : 0.35kg

Packaged Length : 20.4cm

Packaged Width : 11.6cm

Packaged Height : 6.6cm

Resolution Frequency : 60Hz, 60Hz

HDMI Version : 1.3

HDMI Maximum Data Rate : 6.75Gb/s, 6

Product Specifications

• Transmission Distance: Up to 150m (Cat6), Up to 100m (Cat5e)
• HDMI: 1.3
• HDCP: 1.4b
• Resolution: Up to 1200 (1920 x 1200) @ 60Hz
• Video Bandwidth: 6.75Gbps
• Video Compression: H.265 / H.264
• Audio: LPCM 2.0CH
• Colour Depth: 8-bit
• Infrared Frequency: 20-60KHz
• Power: 5VDC, 1A
• Dimensions: 86(D) x 61(W) x 17(H)mm (Each)
