Champ Audio Amplifier Kit (0.5 Watt)

Assembly Required

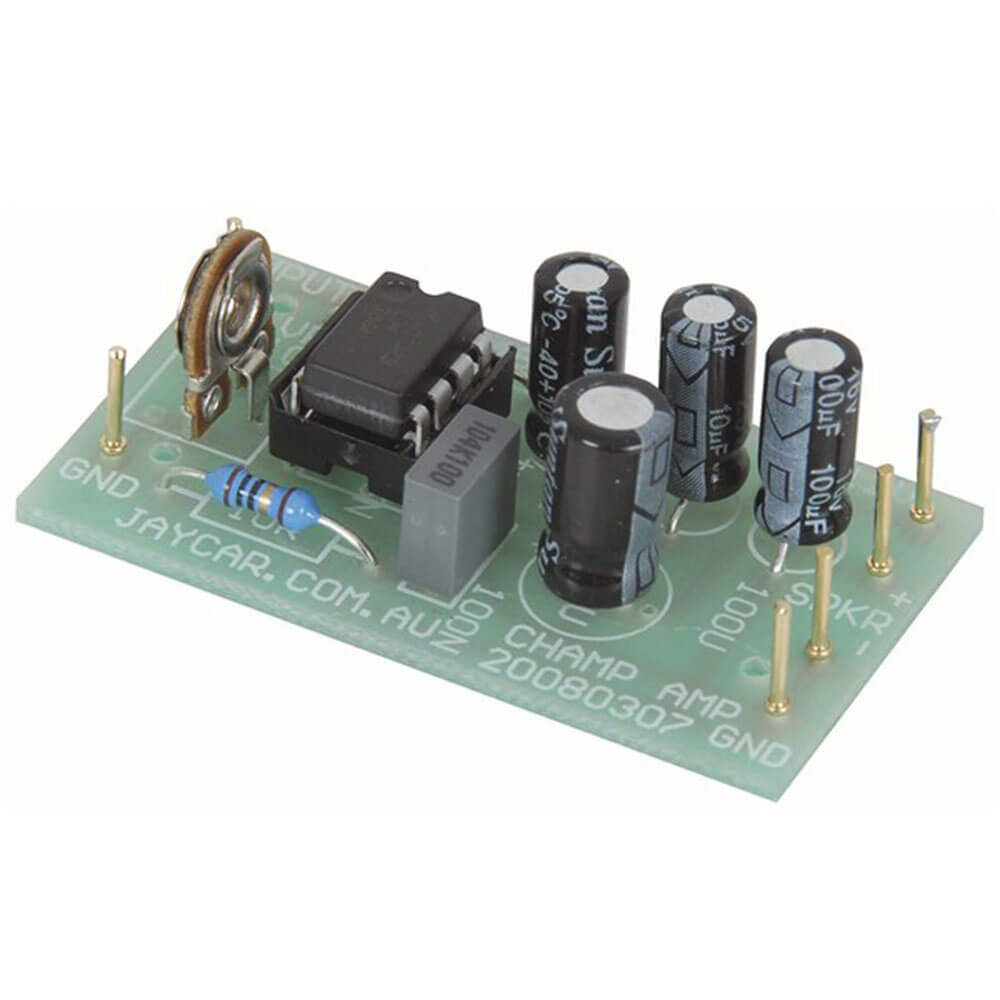

Refer: Silicon Chip February1994 This tiny module uses the LM386 audio IC, and will deliver 0.5W into 8 ohms from a 9 volt supply making it ideal for all those basic audio projects. It features variable gain, will happily run from 4-12VDC and is smaller than a 9 volt battery, allowing it to fit into the tightest of spaces. PCB and all electronic components included.

Product Specifications

• Difficulty : Simple
• Estimated Construction Time : 15.0min
• Tools required : Soldering Iron
• Application Field : Amplifier
• PCB Width : 26.0mm
• PCB Length : 46.0mm
• Audio Device : Amplifier
• Output power : 0.5W
• Output impedence range : 8.0Ohm
• Audio power supply : 9V
